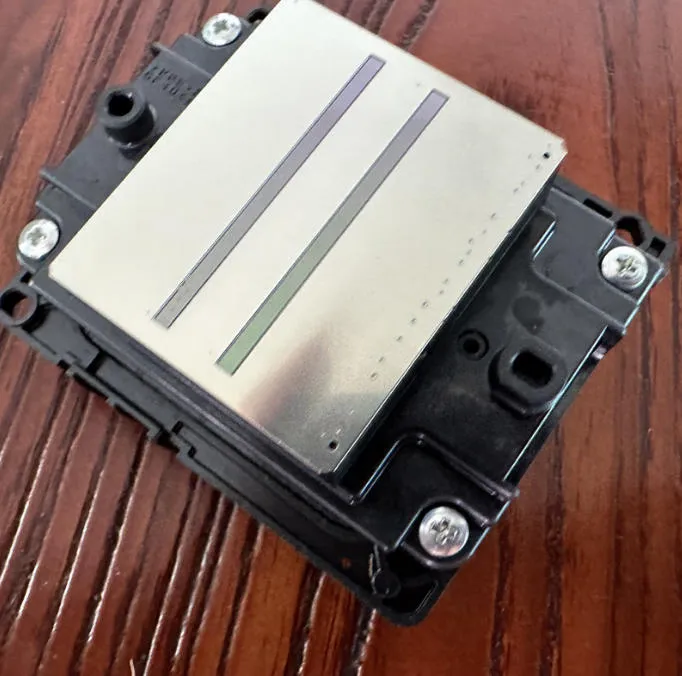

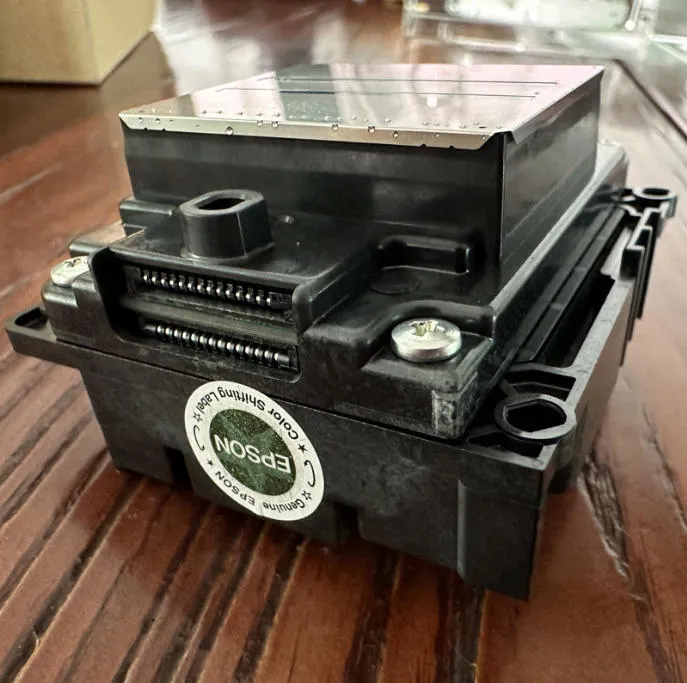

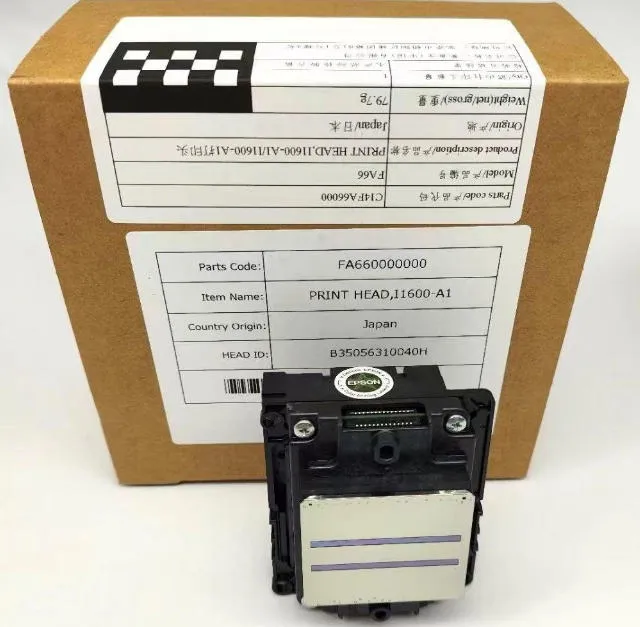

Epson I1600-A1 PrecisionCore Inkjet Printhead
Epson I1600-A1 PrecisionCore Printhead
Compact 1,600-nozzle printhead for precise output in compatible water-based inkjet systems.
Product Overview
The Epson I1600-A1 is a compact PrecisionCore printhead for water-based inkjet equipment. Its 1,600-nozzle design supports a 33.8 mm print swath and flexible multi-color configurations.
Technical Specifications
| Printhead technology | Epson PrecisionCore |
|---|---|
| Compatible ink | Water-based |
| Nozzles | 1,600 |
| Effective print width | 33.8 mm |
| Nozzle resolution | 600 npi |
| Maximum colors | 4 |
| Dimensions | 69.1 × 59.4 × 35.6 mm |
Typical Applications
Direct-to-garment, textile, commercial graphics and compatible water-based printers.
Verify Before Ordering
Send the printer model, current head part number, ink type, cable configuration and required quantity.
Compatibility & Installation
Compatibility depends on the printer model, ink system, waveform, cables and controller. Installation and calibration should be completed by a qualified technician.
Download the product specification PDF →
Need an I1600-A1 quotation?
Send your printer model, current printhead label photo, ink type, quantity and delivery country.
