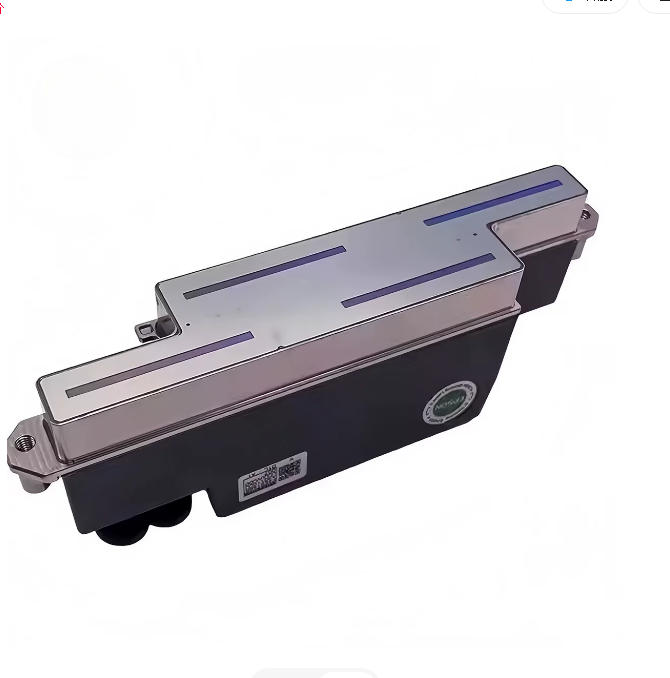

Epson S3200-U3 PrecisionCore Industrial Printhead
Epson S3200-U3 PrecisionCore Industrial Printhead
Epson S3200-U3 PrecisionCore printhead with 3,200 nozzles, 120.2 mm print width, ink recirculation and 4.8/9/15 pl droplets.
The Epson S3200-U3 is a wide-format PrecisionCore industrial printhead for UV and eco-solvent ink systems. Its 120.2 mm print width and built-in ink recirculation support productive, stable printing.
Key Features
3,200 nozzles across a 120.2 mm effective print width
UV and eco-solvent ink compatibility
Ink recirculation near the nozzle plate
4.8, 9 and 15 pl variable droplet options
Technical Specifications
| Printhead technology | Epson PrecisionCore |
|---|---|
| Compatible ink | UV and eco-solvent |
| Nozzles | 3,200 (2 rows) |
| Effective print width | 120.2 mm |
| Nozzle resolution | 600 npi (300 npi × 2 rows) |
| Droplet sizes | 4.8 / 9 / 15 pl |
| Ink recirculation | Yes |
Typical Applications
Wide-format signage, labels, packaging, industrial decoration and UV or eco-solvent printer platforms.
Compatibility and Ordering
Printhead compatibility depends on the printer model, ink system, waveform, cables and controller. Please send your exact printer model and current head part number before ordering. Installation and calibration should be completed by a qualified technician.
Download the product specification PDF
Contact Originalhead for compatibility confirmation, availability and quotation.
