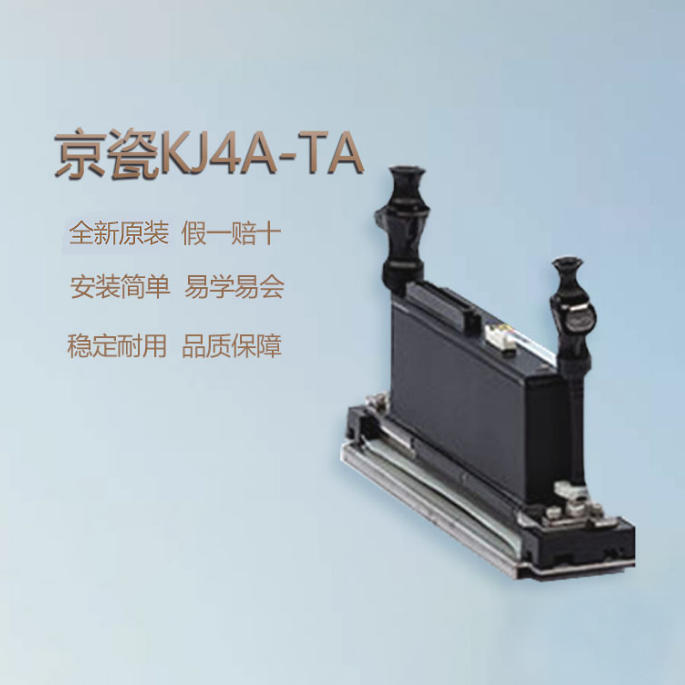

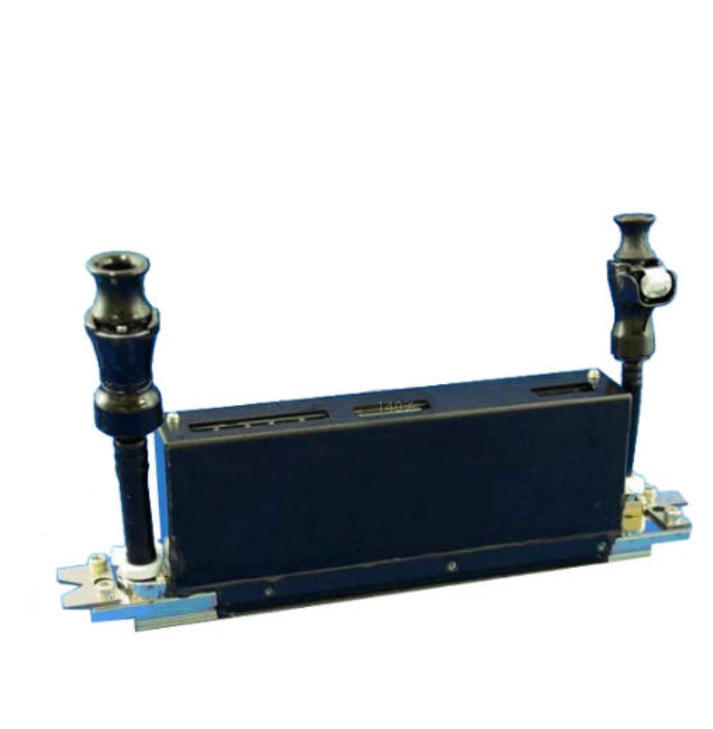

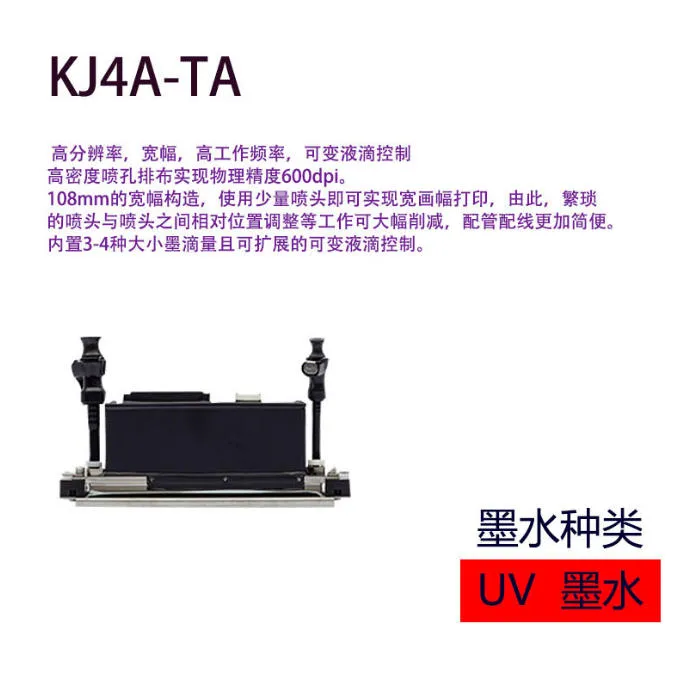

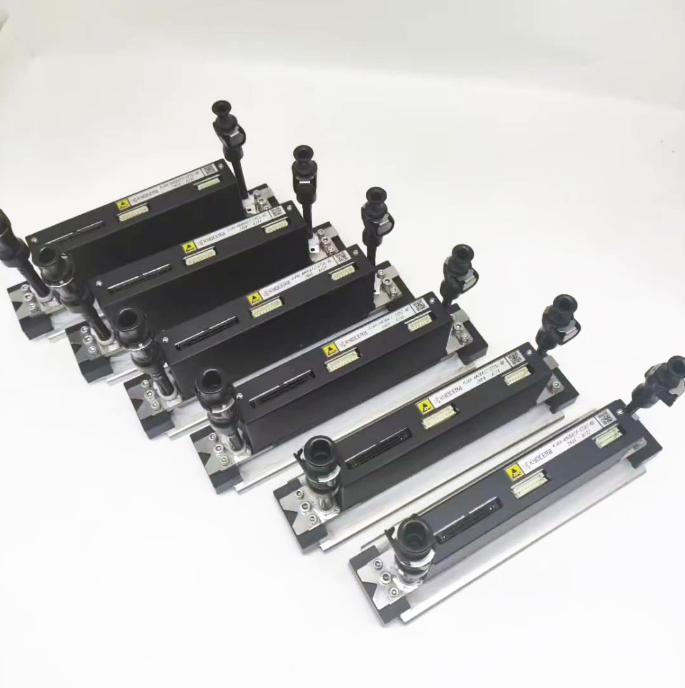

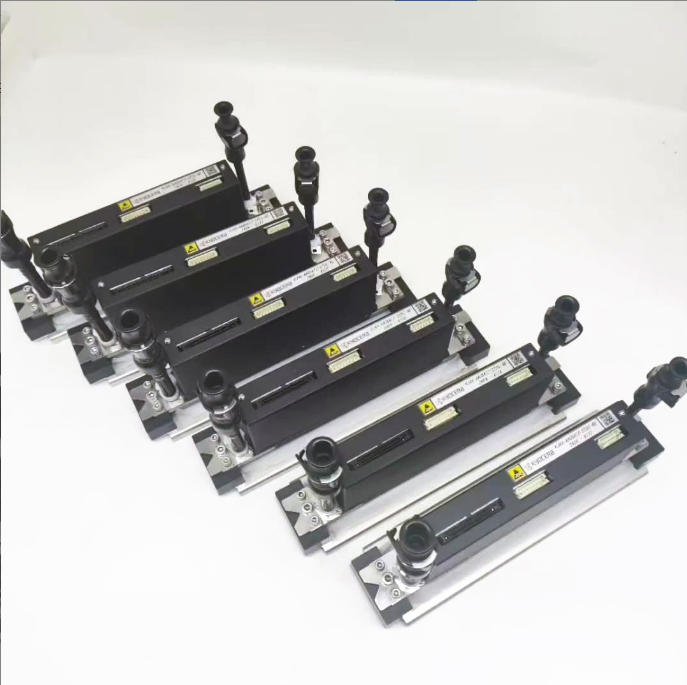

Kyocera KJ4A-TA UV Industrial Inkjet Printhead
Kyocera UV Industrial Platform
Kyocera KJ4A-TA UV Industrial Inkjet Printhead
A wide industrial piezo printhead designed for UV-curable and compatible high-viscosity ink systems, with 600 × 600 dpi resolution and 108.25 mm print width.
2,656
Total nozzles
600 × 600 dpi
Standard resolution
108.25 mm
Effective print width
20 kHz
Maximum drive frequency
Product Overview
The Kyocera KJ4A-TA is a wide industrial piezo printhead designed for UV-curable and other higher-viscosity ink systems. It is suited to label, offset overprint and related industrial applications.
Technical Specifications
| Ink type | UV-curable / compatible high-viscosity ink |
|---|---|
| Nozzles | 2,656 (2,558 effective) |
| Resolution | 600 × 600 dpi |
| Effective print width | 108.25 mm |
| Maximum drive frequency | 20 kHz |
| Reference maximum print speed | 50 m/min |
| Drop volumes | 6 / 7 / 11 / 14 pL |
| Dimensions | 200 × 25 × 59.3 mm |
Typical Applications
Labels, offset overprinting, signage and compatible industrial UV systems.
Pre-Order Verification
Send the printer model, current head code, ink type and label photo before ordering.
Verify the exact KJ4A-TA configuration
Send your model details for compatibility confirmation and quotation.
Kyocera Printheads
Ultra durable, low consumption & high productivity
Constant ink circulation / Long service life / Mass production oriented
Ideal for industrial UV & packaging printing
