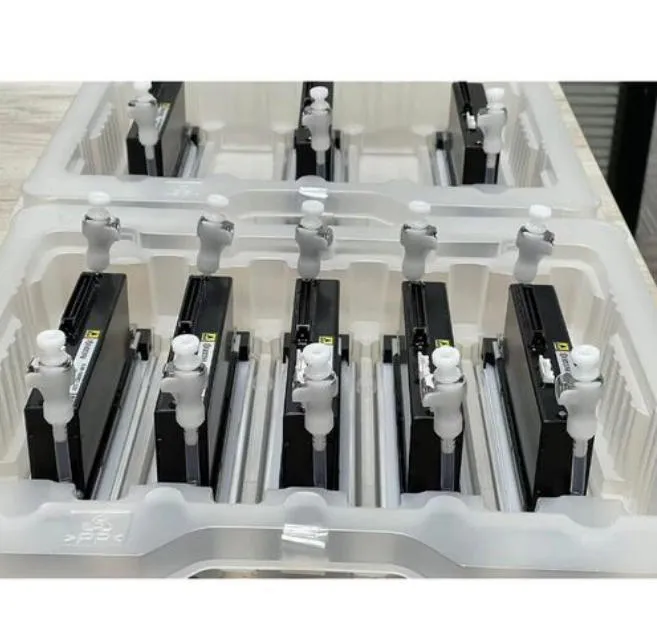

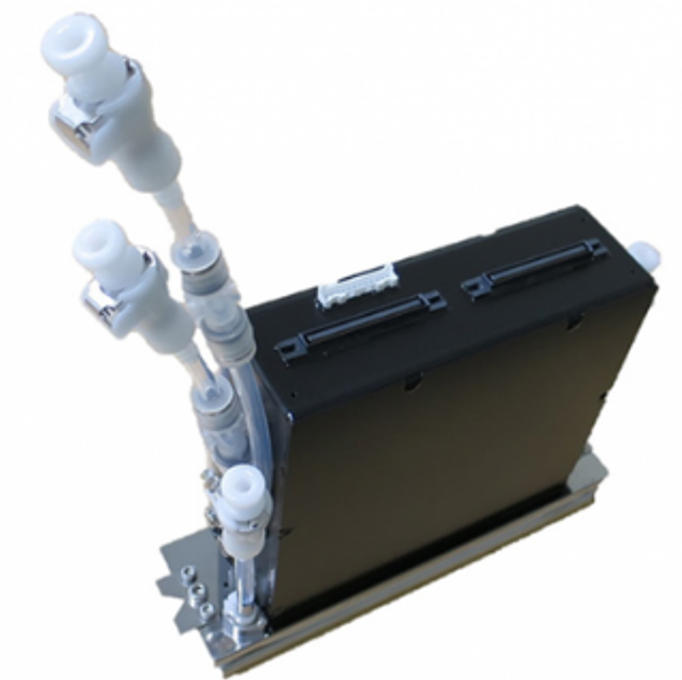

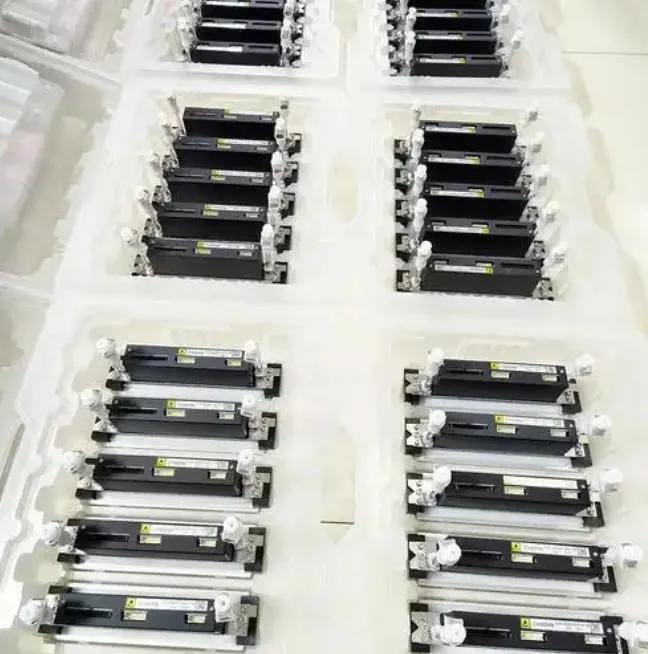

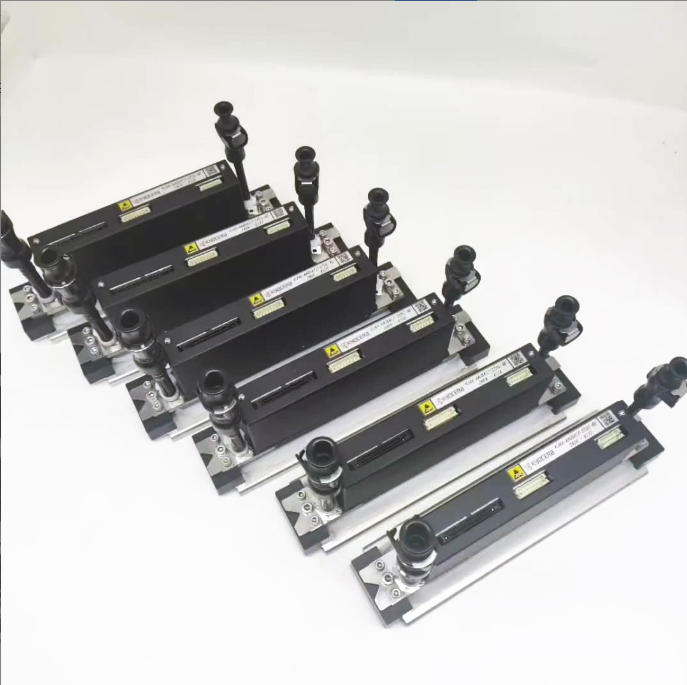

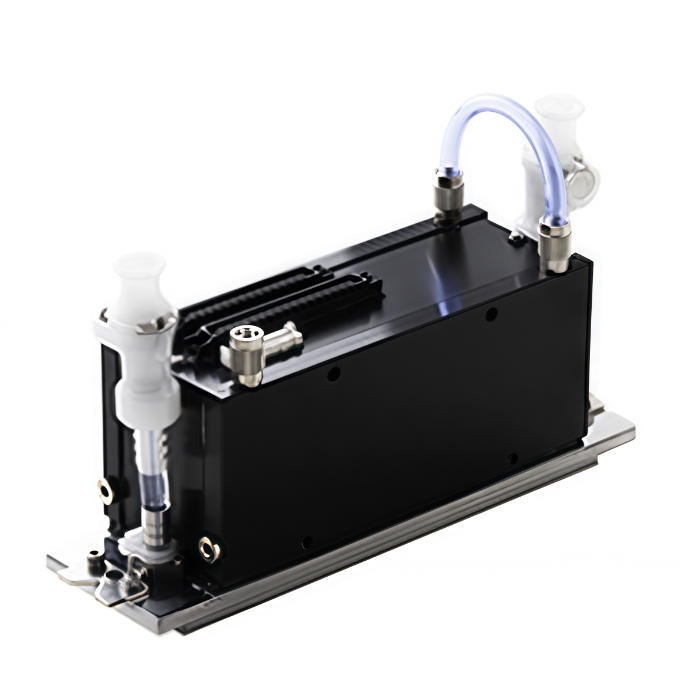

Kyocera KJ4B-1200 High-Resolution Inkjet Printhead
Kyocera High-Resolution Platform
Kyocera KJ4B-1200 High-Resolution Inkjet Printhead
A high-resolution industrial piezo printhead for water-based ink systems, combining 5,312 nozzles, 1200 × 1200 dpi and a 112.42 mm print swath.
5,312
Nozzles
1200 × 1200 dpi
Standard resolution
112.42 mm
Effective print width
64 kHz
Maximum drive frequency
Product Overview
The Kyocera KJ4B-1200 is a high-resolution industrial piezo printhead for water-based ink systems. Its 5,312 nozzles and wide print swath support high-quality graphics and commercial printing.
Technical Specifications
| Ink type | Water-based (aqueous) |
|---|---|
| Nozzles | 5,312 |
| Resolution | 1200 × 1200 dpi |
| Effective print width | 112.42 mm |
| Maximum drive frequency | 64 kHz |
| Reference maximum print speed | 80 m/min |
| Drop volumes | 1.5 / 3 / 5 pL |
| Dimensions | 200 × 45 × 71.7 mm |
Typical Applications
High-resolution graphics, commercial printing and compatible aqueous single-pass systems.
Pre-Order Verification
Send the printer model, current head code and clear label photos before ordering.
Verify your KJ4B-1200 application
Send the exact configuration for compatibility confirmation and quotation.
