STARFIRE SG1024/MC industrial printhead with 1,024 jets, 400 dpi, 64.96 mm print width and 30 / 80 pL drop sizes.

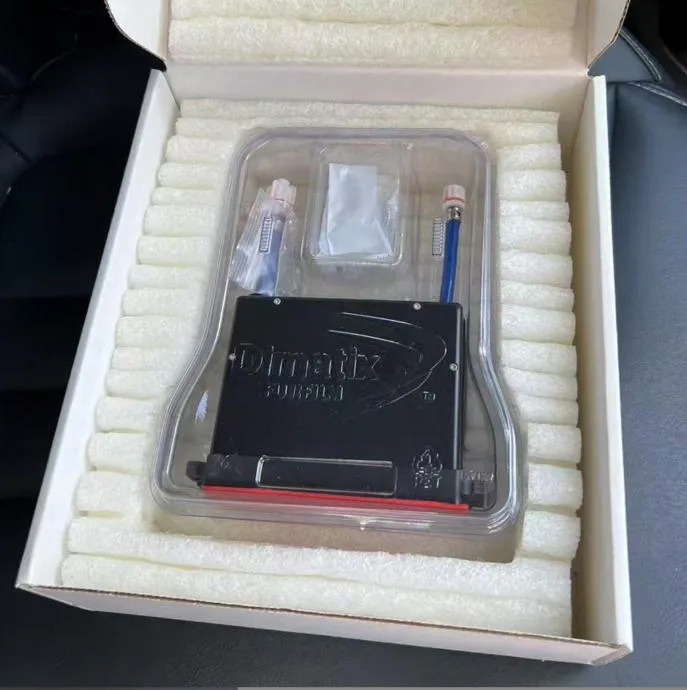

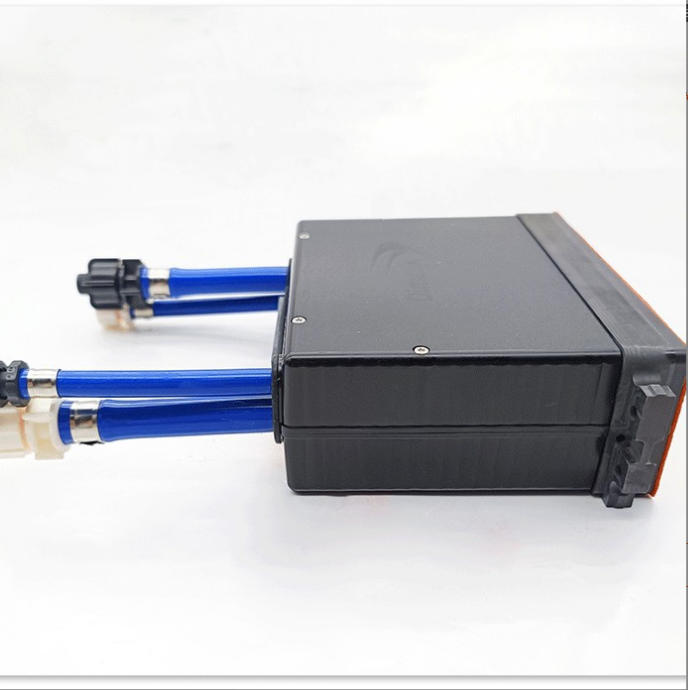

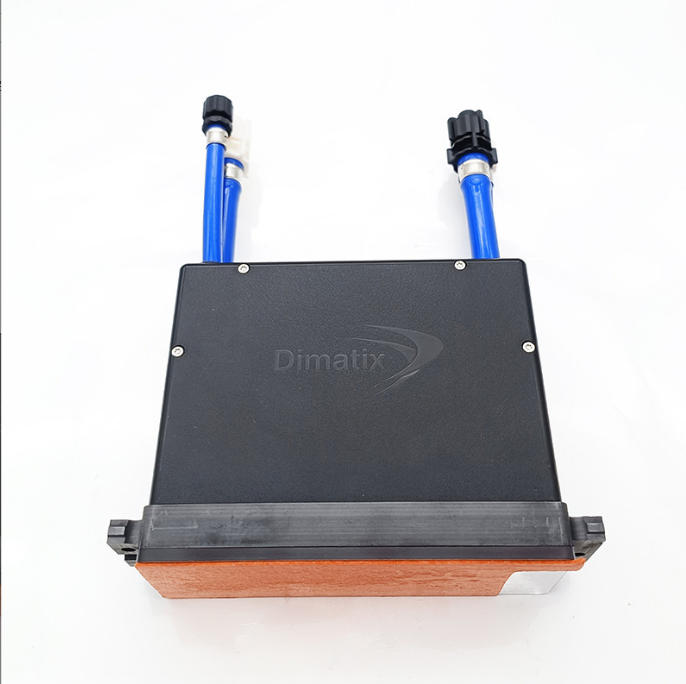

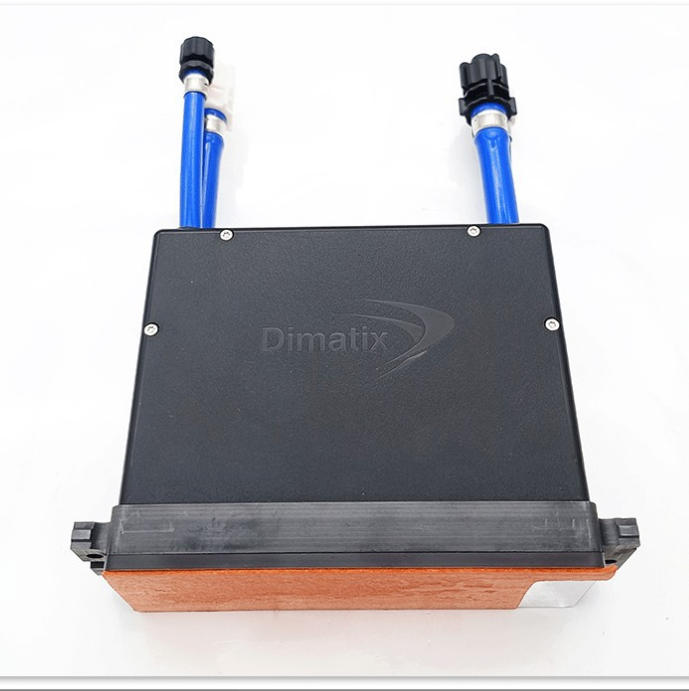

The FUJIFILM Dimatix STARFIRE SG1024/MC is a robust, repairable drop-on-demand printhead for high-speed scanning and single-pass industrial systems. It combines a metal nozzle plate with REDIJET ink recirculation and integrated temperature control.
Key Features
1,024 individually addressable jets
64.96 mm effective print width
REDIJET continuous ink recirculation
Robust and repairable industrial construction
Technical Specifications
| Series | STARFIRE SG1024 C-Series |
|---|---|
| Addressable jets | 1,024 |
| Print width | 64.96 mm (2.55 in) |
| Native resolution | 400 dpi |
| Native / largest drop size | 30 / 80 pL |
| Firing frequency | 30 / 12 kHz |
| Compatible fluids | Oil- and solvent-based ceramic inks |
| Nozzle plate | Metal |
| Temperature control | Yes |
Typical Applications
Ceramic tile printing, decoration, glazing, engobe and compatible industrial deposition systems.
Compatibility and Ordering
Compatibility depends on the printer, ink formulation, waveform, cables, electronics and operating conditions. Please send the exact printer model and current printhead part number before ordering. Installation and calibration should be completed by a qualified technician.
Download the product specification PDF
Contact Originalhead for compatibility confirmation, availability and quotation.
