Ricoh MH2420 Gen4 Industrial Inkjet Printhead
Ricoh MH2420 Industrial Inkjet Printhead

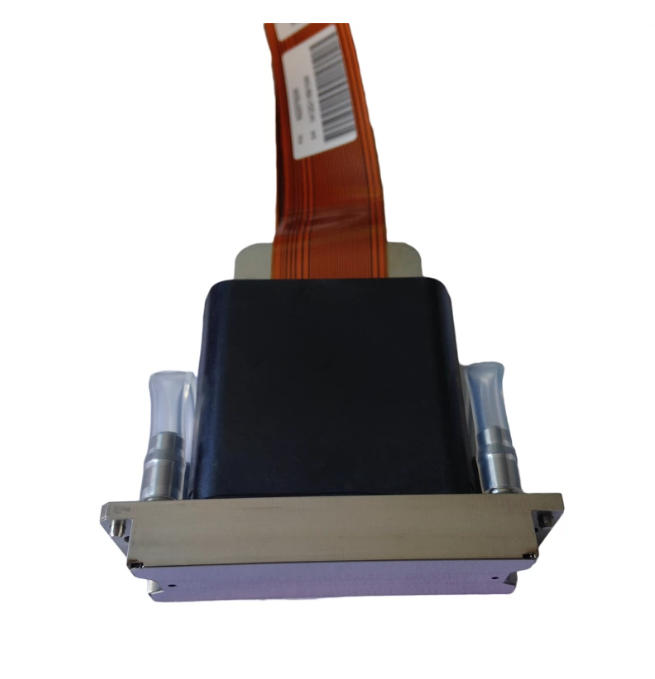

A compact metal printhead with 384 nozzles, 32.4 mm print width and variable-drop greyscale capability for compatible industrial systems.
384 nozzles7–35 pl greyscaleUV · Solvent · AqueousProduct Overview
The MH2420 uses two staggered nozzle rows, supports up to two ink colors and integrates a heater and thermistor. Match ink formulation, waveform, substrate and printer configuration before installation.
384 nozzles arranged in two staggered rows of 192.
7 pl binary operation and 7–35 pl greyscale capability.
Built-in heater and thermistor; operating temperature up to 60°C.
Technical Specifications
| Specification | MH2420 |
|---|---|
| Print width | 32.4 mm |
| Nozzles | 384 (2 × 192), staggered |
| Maximum ink colors | 2 |
| Drop volume | 7 pl binary; 7–35 pl greyscale |
| Jetting frequency | 30 kHz binary; 20 kHz greyscale |
| Greyscale | 4 levels |
| Operating temperature | Up to 60°C |
| Dimensions (W × D × H) | 63 × 16.2 × 62.4 mm; excluding cables |
| Weight | 73 g |
| Ink viscosity | 10–12 mPa·s |
Drop volume and greyscale performance depend on ink properties and driving conditions.
Ink & Applications
Compatible ink types: UV, solvent and aqueous. Intended for industrial systems configured for the MH2420; application suitability depends on ink, substrate and printer design.
Verify Before Ordering

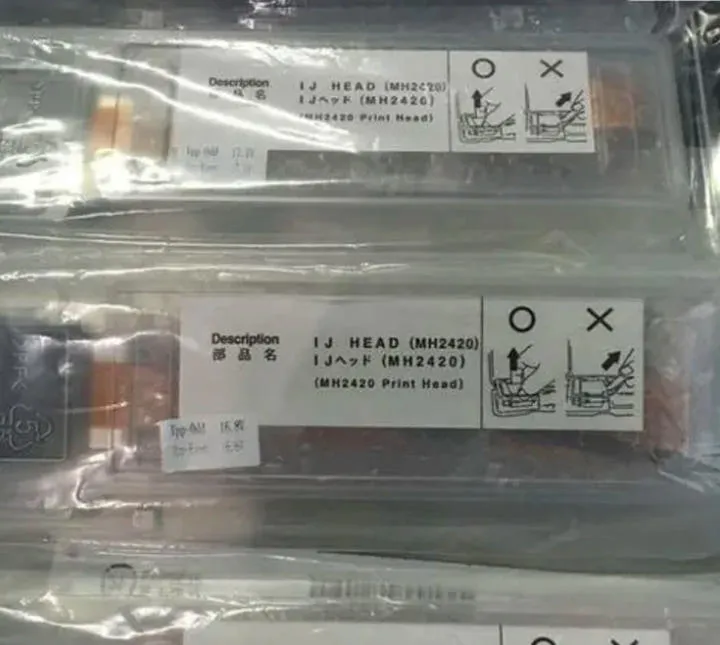

Send clear photos of the current head label, ink ports, alignment pins and cable arrangement. Confirm printer model and exact replacement configuration before ordering.
Compatibility & Installation

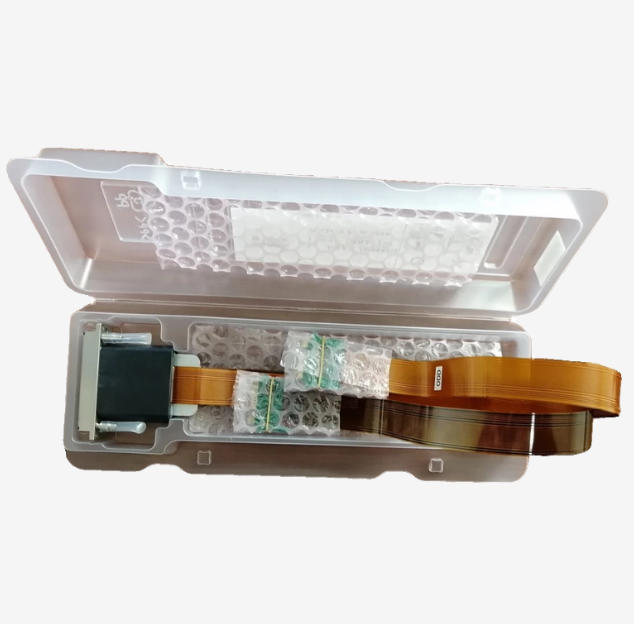

This is a precision component for compatible industrial inkjet systems. Installation and waveform setup should be completed by qualified technicians. Confirm condition, stock, included accessories, packaging and delivery lead time before purchase.
Request Price & Compatibility Check
Include your printer model, current head label photo, ink type, quantity and delivery country for faster verification.
Send Your EnquiryThe MH2420 is a 384-nozzle industrial printhead with a 32.4 mm print width. It supports UV, solvent and aqueous ink types, subject to formulation and printer compatibility.
