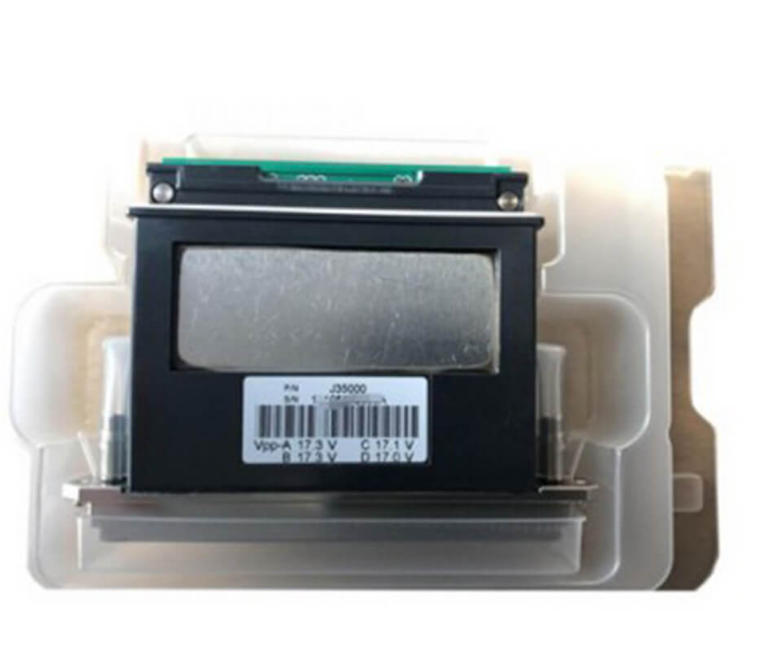

Ricoh MH5220 Gen5S Industrial Inkjet Printhead
Ricoh MH5220 Gen5S Industrial Inkjet Printhead
Fine-detail UV printing with a 2.5 pl minimum droplet, stainless-steel construction and integrated temperature control.
Product Overview
The Ricoh MH5220 is an industrial UV printhead designed for fine-detail output. Four staggered nozzle rows provide 600 dpi single-color printing, while isolated ink paths support configurations with up to two colors.
Technical Specifications
| Print width | 54.1 mm |
|---|---|
| Nozzles | 1,280 (4 × 320) |
| Maximum ink colors | 2 |
| Drop volume | 2.5 pl binary; 2.5–9 pl greyscale |
| Jetting frequency | 30 kHz |
| Greyscale | 4 levels |
| Temperature control | Heater and thermistor; up to 50°C |
| Dimensions | 89 × 24.5 × 66.3 mm; excluding cables and connectors |
| Weight | 142 g |
| Ink viscosity | 10–12 mPa·s |
Droplet and greyscale performance depend on ink properties and driving conditions.
Ink & Applications
For compatible UV systems used in labels, packaging and graphics. Confirm the exact ink formulation and printer configuration.
Verify Before Ordering
Send the current head label and connector photos, printer model, ink type and required quantity.
Compatibility & Installation
Compatibility depends on the exact head version, waveform, ink formulation, cables and printer controller. Installation should be completed by a qualified technician.
Download the product datasheet →
Need an MH5220 quotation?
Send your printer model, current printhead label photo, ink type, quantity and delivery country.
Request a QuoteRicoh MH5220 (Gen5S) supports UV ink and 2.5–9 pl variable droplets, depending on ink properties. Four staggered rows provide 600 dpi single-color printing, with isolated ink paths for up to two colors.
