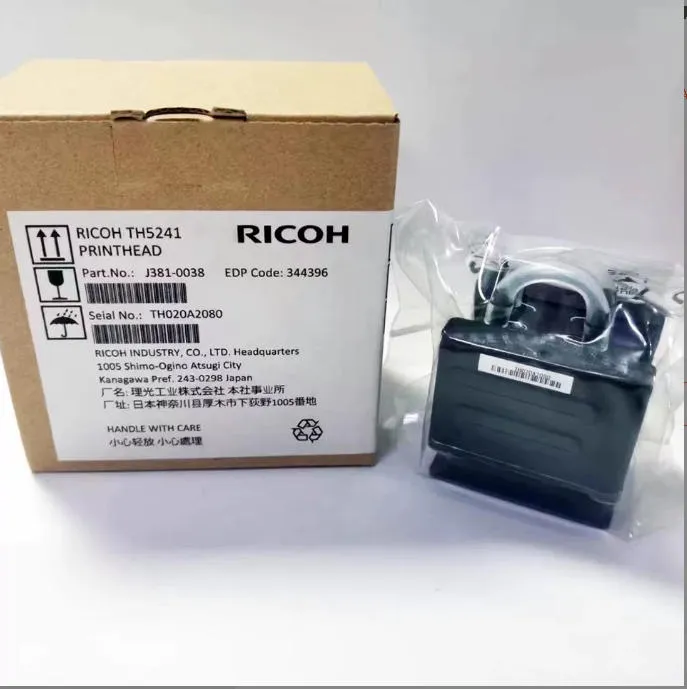

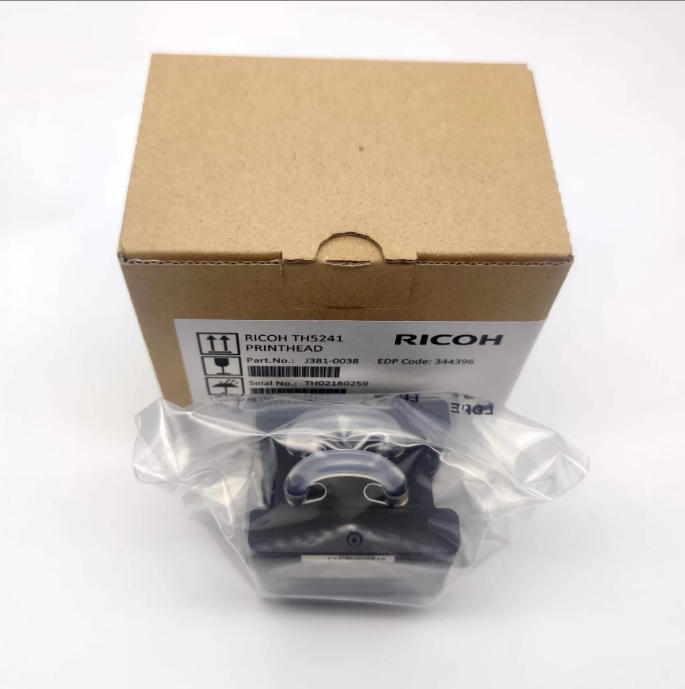

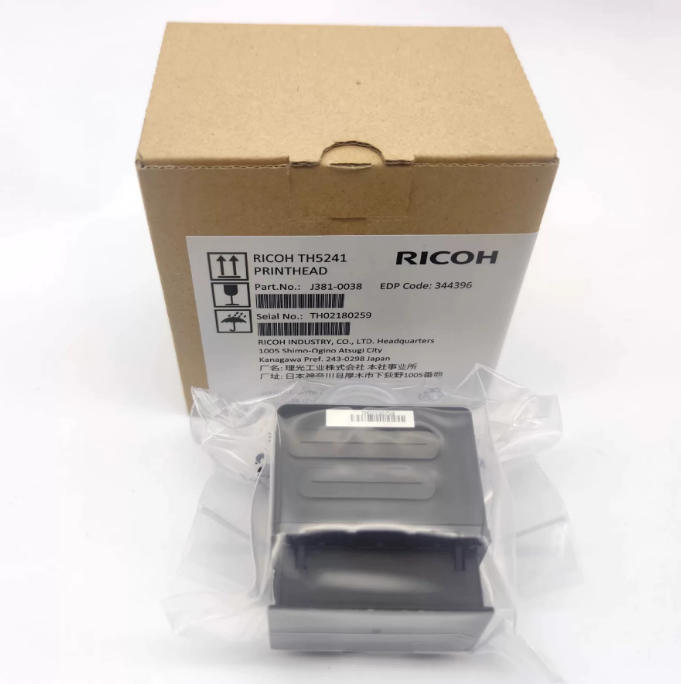

Ricoh TH5241 G5i Industrial Inkjet Printhead
Ricoh TH5241 G5i Industrial Inkjet Printhead
A compact 1,280-nozzle thin-film piezoelectric printhead for high-definition printing across compatible industrial systems.
1,280 nozzlesUp to 1,200 dpiUV · Solvent · AqueousProduct Overview
The TH5241 combines a four-row MEMS nozzle design with flexible single-drop and multi-drop control. Its compact 63 g package supports up to four ink colors for sign graphics, labels, textiles and direct-to-garment applications.
Up to 1,200 dpi depending on system configuration.
3 pl single drop, 3–12 pl multi-drop and up to 21 pl maximum.
1,280 staggered nozzles with support for up to four ink colors.
Technical Specifications
| Specification | TH5241 |
|---|---|
| Print width | 27.1 mm (1.06 in) |
| Number of nozzles | 1,280 (320 × 4 rows), staggered |
| Nozzle resolution | 600 npi (1 or 2 colors) / 300 npi (4 colors) |
| Compatible inks | UV, solvent, aqueous and others |
| Firing frequency | 40 kHz (2 levels) / 24 kHz (4 levels) |
| Drop volume | 3 pl single drop / 3–12 pl multi-drop (max. 21 pl) |
| Dimensions | 52.7 × 45.8 × 55.4 mm |
| Weight | 63 g |
Performance depends on ink type, ink properties, waveform and printer configuration. Confirm compatibility before installation.
Ink & Applications
Suitable for sign graphics, labels, textile printing, direct-to-garment and other high-definition industrial inkjet systems.
Verify Before Ordering
Send a clear photo of the current head label and connector. Confirm printer model, ink formulation, cable arrangement and required color configuration before ordering.
Compatibility & Installation
This is a precision component for compatible industrial inkjet systems. Installation and waveform setup should be completed by qualified technicians. Confirm condition, stock, included accessories, packaging and delivery lead time before purchase.
Request Price & Compatibility Check
Include your printer model, current head label photo, ink type, quantity and delivery country for faster verification.
