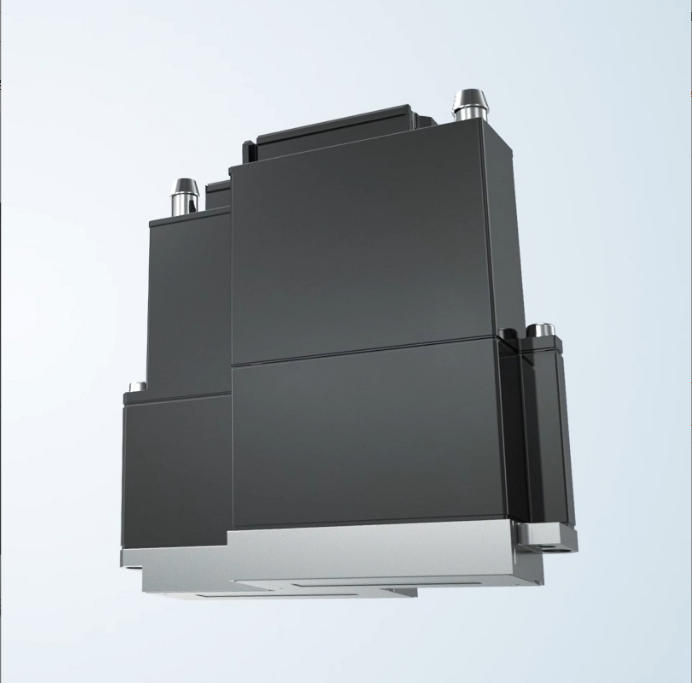

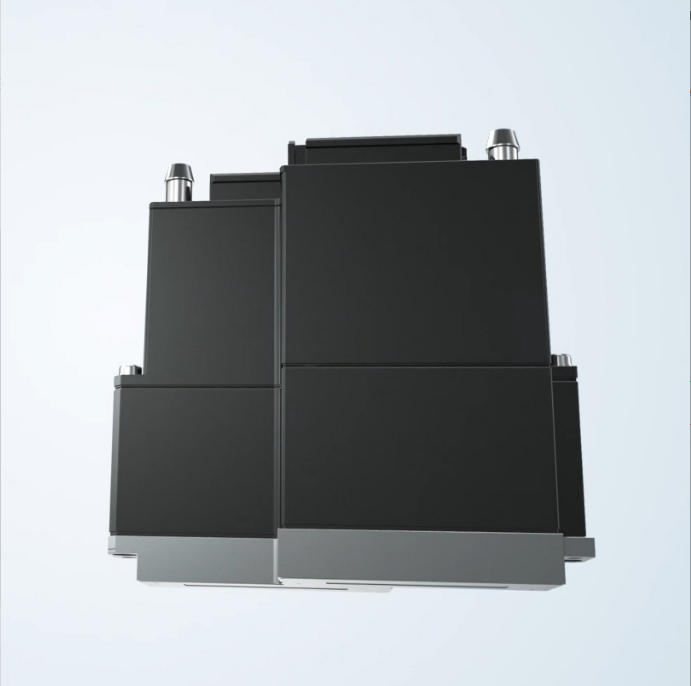

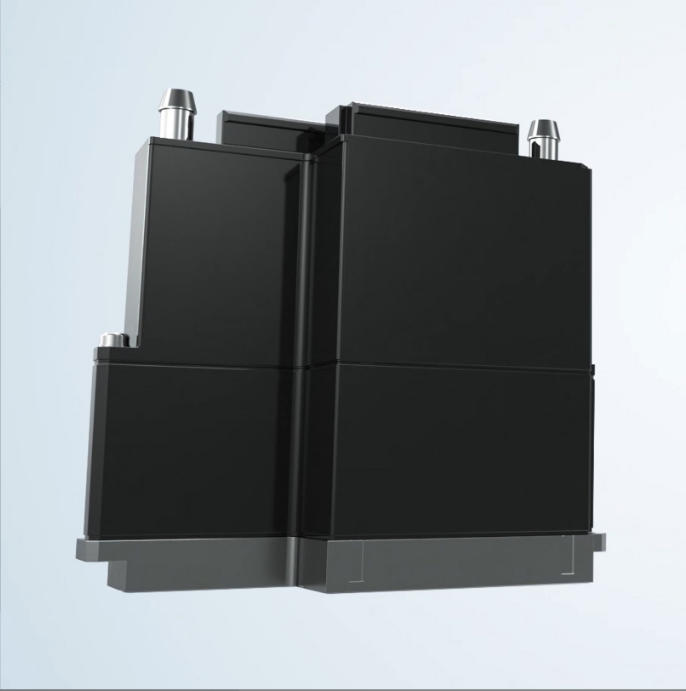

Ricoh TH6310F Recirculating Industrial Inkjet Printhead
Ricoh TH6310F Recirculating Industrial Inkjet Printhead
A high-productivity recirculating printhead with a 66.7 mm print width for compatible multi-pass and single-pass industrial systems.
1,600 physical nozzlesUp to 80 kHzAqueous · UV · SolventProduct Overview
The TH6310F combines a 600 npi nozzle design with ink recirculation for stable jetting across compatible multi-pass and single-pass systems. Its structure helps address nozzle drying, sedimentation and trapped air while supporting accurate drop placement across a wide print gap.
1,600 physical nozzles, 1,576 net nozzles and a 66.7 mm print width.
Designed to support stable jetting and reduce common ink-path issues.
5 pl single-drop and 5–18 pl multi-drop operation with up to four greyscale levels.
Technical Specifications
| Specification | TH6310F |
|---|---|
| Print width | 66.7 mm |
| Number of nozzles | 1,600 physical / 1,576 net |
| Nozzle resolution | 600 npi |
| Compatible inks | Aqueous, UV, solvent and others |
| Firing frequency | 80 kHz (2 levels) / 60 kHz (3 levels) / 40 kHz (4 levels) |
| Drop volume | 5 pl single drop / 5–18 pl multi-drop |
| Ink circulation | Supported |
| Dimensions | 104.6 × 44.9 × 104 mm |
| Weight | 374 g |
Performance depends on ink type, ink properties, waveform and system configuration. Confirm compatibility before installation.
Ink & Applications
Suitable for textile, labels, packaging, corrugated materials and other high-productivity industrial printing systems.
Verify Before Ordering
Send a clear photo of the current head label and connector. Confirm printer model, ink formulation, recirculation setup, waveform and cable configuration before ordering.
Compatibility & Installation
This is a precision component for compatible industrial inkjet systems. Installation and waveform setup should be completed by qualified technicians. Confirm condition, stock, included accessories, packaging and delivery lead time before purchase.
Request Price & Compatibility Check
Include your printer model, current head label photo, ink type, quantity and delivery country for faster verification.
