Ricoh MH5320 Gen6 Industrial Inkjet Printhead
Ricoh MH5320 Gen6 Industrial Inkjet Printhead
1,280 nozzles · 54.1 mm print width · 5–15 pl grayscale · UV, solvent and aqueous ink configurations
Product Overview

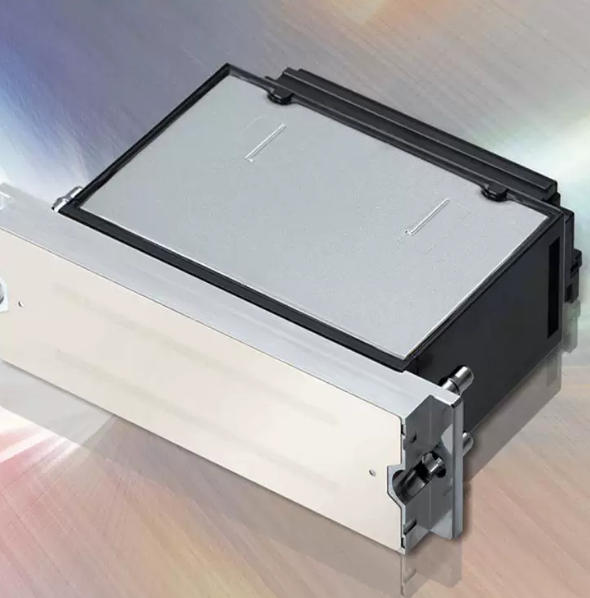

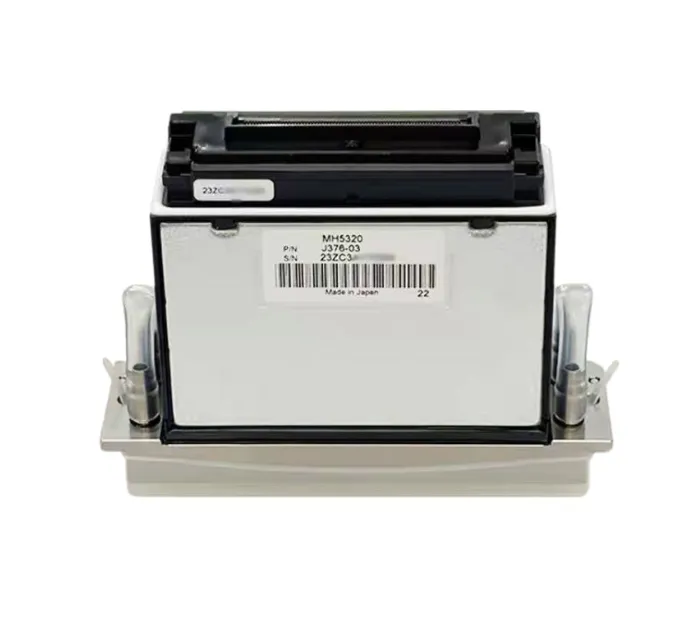

The Ricoh MH5320 is a Gen6 industrial inkjet printhead designed for precise droplet control and stable production. Its stainless-steel housing, integrated heater and thermistor support demanding industrial printing environments.
Key Features
1,280 nozzles arranged across four staggered rows.
5 pl binary droplets and 5–15 pl grayscale droplets, depending on ink properties.
Integrated heater and thermistor for controlled ink temperature.
Durable stainless-steel construction for industrial use.
Supports two ink colors and four-level grayscale operation.
Technical Specifications
| Specification | MH5320 |
|---|---|
| Print width | 54.1 mm (2.1 in) |
| Nozzles | 1,280 (4 × 320), staggered |
| Maximum ink colors | 2 |
| Jetting frequency | 50 kHz (3 levels); 40 kHz (4 levels) |
| Grayscale | 4 levels |
| Drop volume | 5 pl binary; 5–15 pl grayscale* |
| Dimensions (W × D × H) | 89 × 24.51 × 66.3 mm |
| Weight | 228 g including 45C cable |
| Ink viscosity | 10–12 mPa·s |
| Surface tension | 28–35 mN/m |
*Droplet performance depends on ink type, waveform and printer configuration.
Ink Compatibility
UV, solvent and aqueous ink configurations. Always confirm the exact ink formulation, waveform and printer setup before purchase.
Applications
Signage, labels and packaging, decorative printing and other industrial inkjet systems, subject to complete-system compatibility.
Model Verification Before Ordering

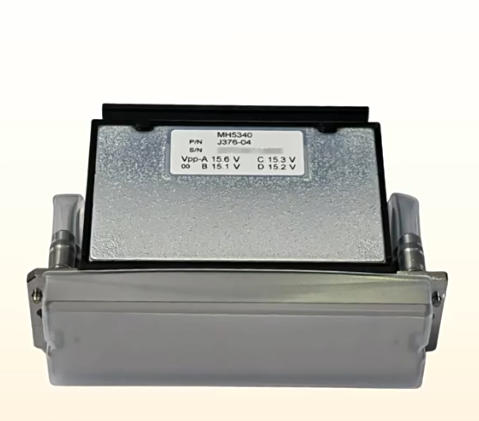

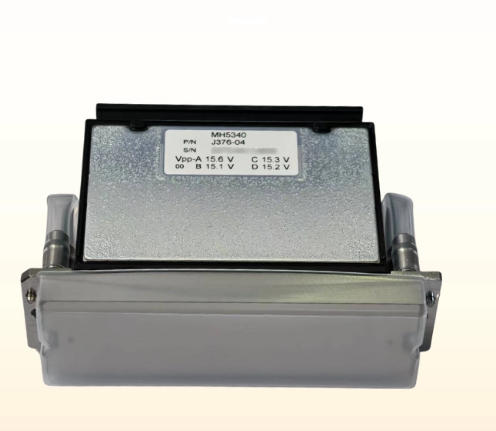

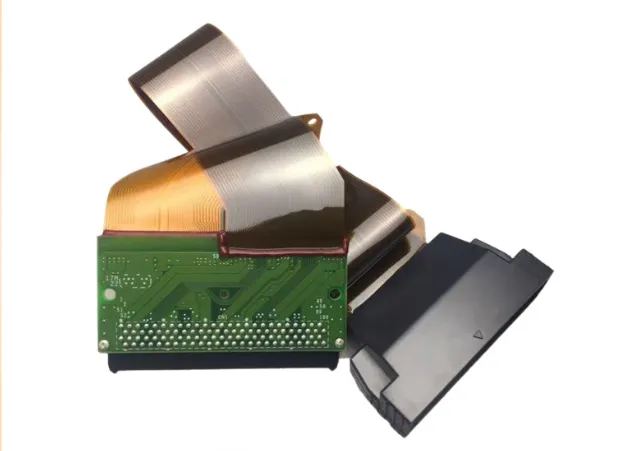

Send us a clear photo of the existing printhead label, printer brand and model, ink type, cable configuration and required quantity. Our team will help verify the correct version before quotation and shipment.
Important: Industrial printheads are not universal plug-and-play parts. Installation, waveform settings and ink compatibility must be confirmed by a qualified technician.
Packaging & Global Delivery
Availability and shipping lead time vary by destination and order quantity. Before ordering, confirm product condition, included accessories, packaging, warranty terms and delivery method with our sales team.
