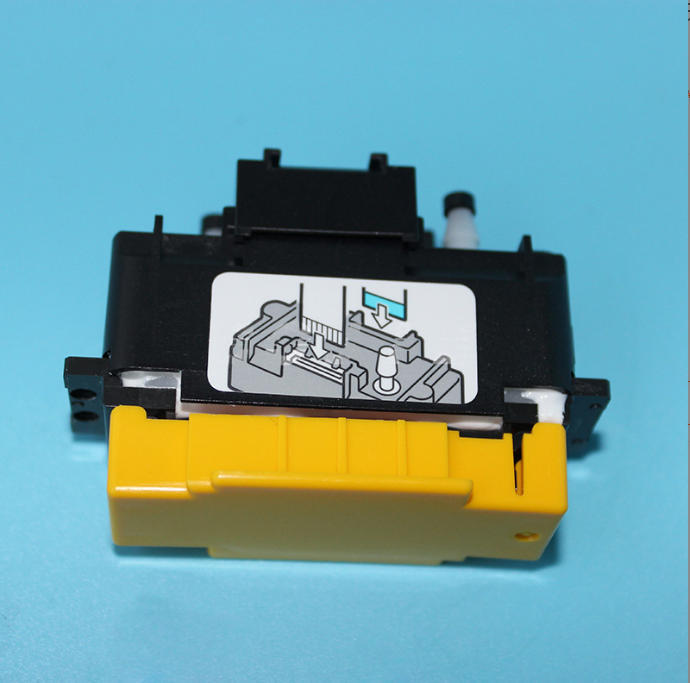

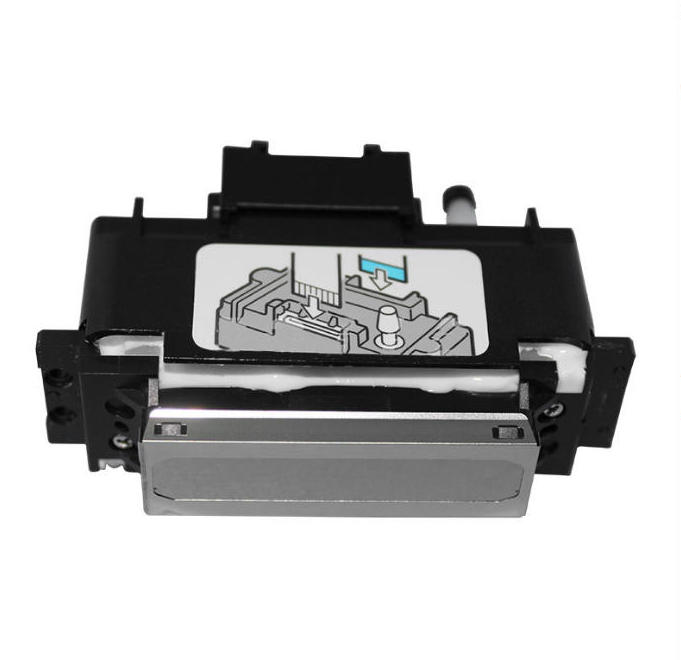

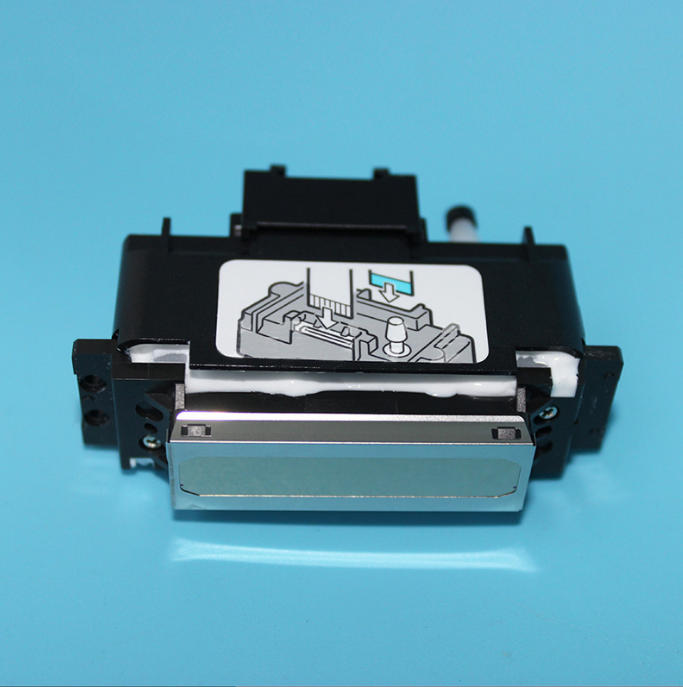

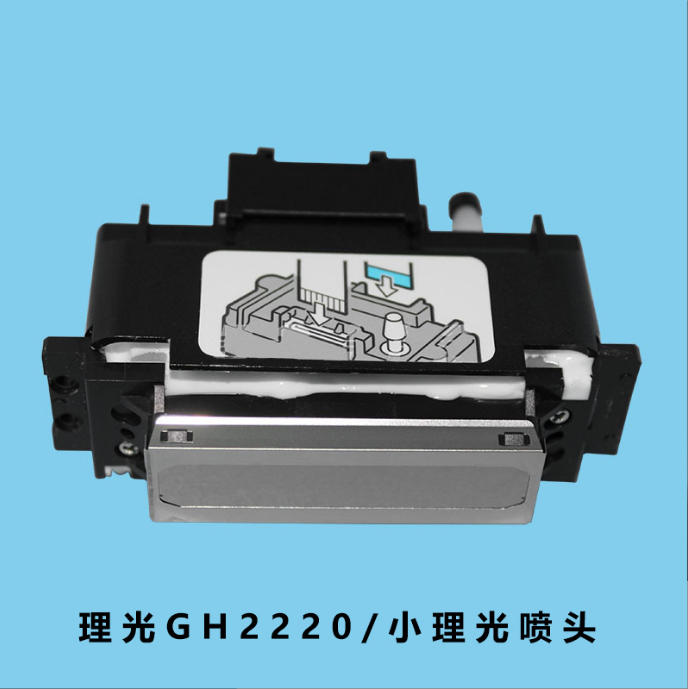

Ricoh GH2220 Industrial Inkjet Printhead
Ricoh GH2220 Industrial Inkjet Printhead
A compact 384-nozzle printhead with 32.4 mm print width and precise 3–21 pl drop control for compatible industrial systems.
384 nozzles3–21 pl drop controlAqueous · SolventProduct Overview
The GH2220 is designed for sign graphics, textile printing, coding and marking applications. Its compact 38 g construction supports integration where controlled droplet size and a 32.4 mm print width are required.
384 nozzles across a 32.4 mm (1.28 in) print width.
3–5 pl binary droplets and greyscale droplets up to 21±2 pl.
Compact 61.8 × 23.3 × 40.5 mm body weighing 38 g.
Technical Specifications
| Specification | GH2220 |
|---|---|
| Print width | 32.4 mm (1.28 in) |
| Number of nozzles | 384 |
| Compatible inks | Aqueous and solvent |
| Jetting frequency | 30 kHz binary / 24 kHz greyscale |
| Drop volume | 3–5 pl binary / 21±2 pl greyscale* |
| Maximum greyscale | 4 levels* |
| Dimensions | 61.8 × 23.3 × 40.5 mm |
| Weight | 38 g |
*Performance depends on ink type, ink properties and waveform settings. Confirm compatibility before installation.
Ink & Applications
Suitable for sign graphics, textile printing, coding and marking, and other compact industrial printing systems using compatible aqueous or solvent ink.
Verify Before Ordering
Send a clear photo of the current printhead label and connector. Confirm printer model, ink type, cable arrangement and required configuration before ordering.
Compatibility & Installation
This is a precision component for compatible industrial inkjet systems. Installation and waveform setup should be completed by qualified technicians. Confirm condition, stock, included accessories, packaging and delivery lead time before purchase.
Request Price & Compatibility Check
Include your printer model, current head label photo, ink type, quantity and delivery country for faster verification.
